Environment Setup¶
In this page, we will be discussing how to set up your environment, and make sure to run up the UI front end and the Book Review Service’s node server.
What does the final deliverable for this section look like?¶
- You have a running Kubernetes (k8s) cluster on your local machine, with Knative installed.
- You have your front end application deployed as Kubernetes deployment
- You have your Node.js application deployed as Kubernetes deployment
We will be fulfilling each requirement with the order above.
Clone the Repository¶
git clone https://github.com/knative/docs.git
Troubleshooting
Having issue with cloning your repo? Check here for help.
Warning
IMPORTANT: Please take some time to read the Disclaimer before moving to the next page.

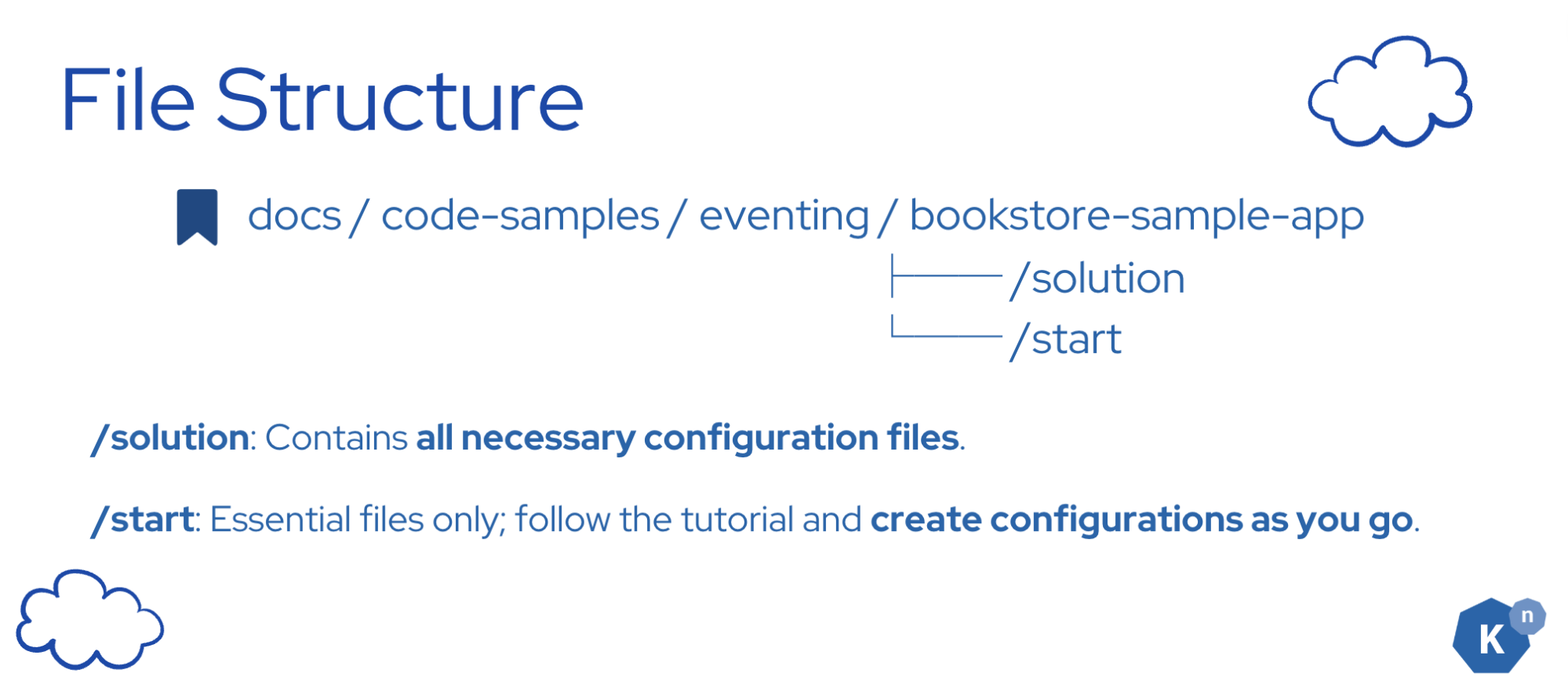

File Structure¶
The code for the sample app is in docs/code-samples/eventing/bookstore-sample-app
Under bookstore-sample-app folder, there are 2 folders:
-
/solution: this folder contains all the yaml files, and the code you needed. Check it when you got stuck.
-
/start: this folder contains the necessary files for you to get started. Save there all the configuration files yourself following the tutorial!
Tip
Kuack suggests you to start from /start, write all the configuration files as you go over the tutorial, and check solutions when you got stuck.
Always cd back to the root directory, which is /start, before running any commands.
All the commands in the tutorial are written assuming you are in the /start directory.
Shortcut¶
Running docs/code-samples/eventing/bookstore-sample-app/start/setup.sh will automatically complete all tasks in this section.
Warning
However, if you are not familiar with the process, we recommend reviewing the steps below.
Instructions¶
Task 1: Set Up a Running Kubernetes Cluster with Knative Installed¶
We recommend using KinD (Kubernetes in Docker) to run a Kubernetes cluster locally.
In order to access Kubernetes services KinD provides a standalone binary in your host and connects to your cluster and provisions new Load Balancer containers for your Services. It requires privileges to open ports on the system and to connect to the container runtime.
See instructions here: https://kind.sigs.k8s.io/docs/user/loadbalancer/
Tip
We recommend you using kn quickstart plugin to install Knative.
Please follow the instructions here to spin up your cluster with Knative installed!
Verify
You should see the pods in the knative-eventing and knative-serving namespaces running before proceeding.
NAMESPACE NAME READY STATUS RESTARTS AGE
knative-eventing eventing-controller-645c4bcd55-fln6l 1/1 Running 0 17m
knative-eventing eventing-webhook-7fd9cb958f-ft9vj 1/1 Running 0 17m
knative-eventing imc-controller-6b9fbb6487-kwvbz 1/1 Running 0 17m
knative-eventing imc-dispatcher-6c4b5856d-hh7wq 1/1 Running 0 17m
knative-eventing job-sink-5cc89b5d95-fhlt5 1/1 Running 0 17m
knative-eventing mt-broker-controller-568d6b9c59-qk8dj 1/1 Running 0 17m
knative-eventing mt-broker-filter-db66554c4-sxxzr 1/1 Running 0 17m
knative-eventing mt-broker-ingress-774547844d-bbbdw 1/1 Running 0 17m
knative-serving activator-7bcd47489b-ljmt6 1/1 Running 0 17m
knative-serving autoscaler-65cf6767c4-v7rfn 1/1 Running 0 17m
knative-serving controller-964dcf97b-9qwsv 1/1 Running 0 17m
knative-serving net-kourier-controller-854b568d4f-6xhl5 1/1 Running 0 17m
knative-serving webhook-658b566b8-sxbdz 1/1 Running 0 17m
kourier-system 3scale-kourier-gateway-54fb555bd7-v2l8q 1/1 Running 0 17m
kube-system coredns-66bc5c9577-fhnxr 1/1 Running 0 18m
kube-system coredns-66bc5c9577-x299f 1/1 Running 0 18m
kube-system etcd-kind-control-plane 1/1 Running 0 18m
kube-system kindnet-gpq75 1/1 Running 0 18m
kube-system kube-apiserver-kind-control-plane 1/1 Running 0 18m
kube-system kube-controller-manager-kind-control-plane 1/1 Running 0 18m
kube-system kube-proxy-v2kdx 1/1 Running 0 18m
kube-system kube-scheduler-kind-control-plane 1/1 Running 0 18m
local-path-storage local-path-provisioner-7b8c8ddbd6-m5n2m 1/1 Running 0 18m
Task 2: Running the Bookstore Web App¶
The Next.js frontend app is located in the docs/code-samples/eventing/bookstore-sample-app/start/frontend folder.
Deploy the Frontend App¶
You can either build the image locally or use our pre-built image. If you are using the pre-built image, you can proceed to the next step.
When ready, run the following command to deploy the frontend app:
kubectl apply -f frontend/config/100-front-end-deployment.yaml
This will create the Deployment and expose it with a Service of type LoadBalancer to receive external traffic:
deployment.apps/bookstore-frontend created
service/bookstore-frontend-svc created
Verify
Run the following command to check if the pod is running:
kubectl get pods
You will see that your front end pod is running.
NAME READY STATUS RESTARTS AGE
bookstore-frontend-7b879ffb78-9bln6 1/1 Running 0 4m37s
Access the frontend workload¶
Follow the respective minikube or kind instructions to access Kubernetes Services locally from your machine.
Check the running Kubernetes Services:
kubectl get services
And you will see the following console output:
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
bookstore-frontend-svc LoadBalancer 10.99.187.173 172.18.0.6 80:31600/TCP 27m
kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 39m
Note
If the EXTERNAL-IP for your frontend service is <pending>, then there you'll need to check that
your minikube tunnel or KinD cloud-provider-kind is working properly.
Verify

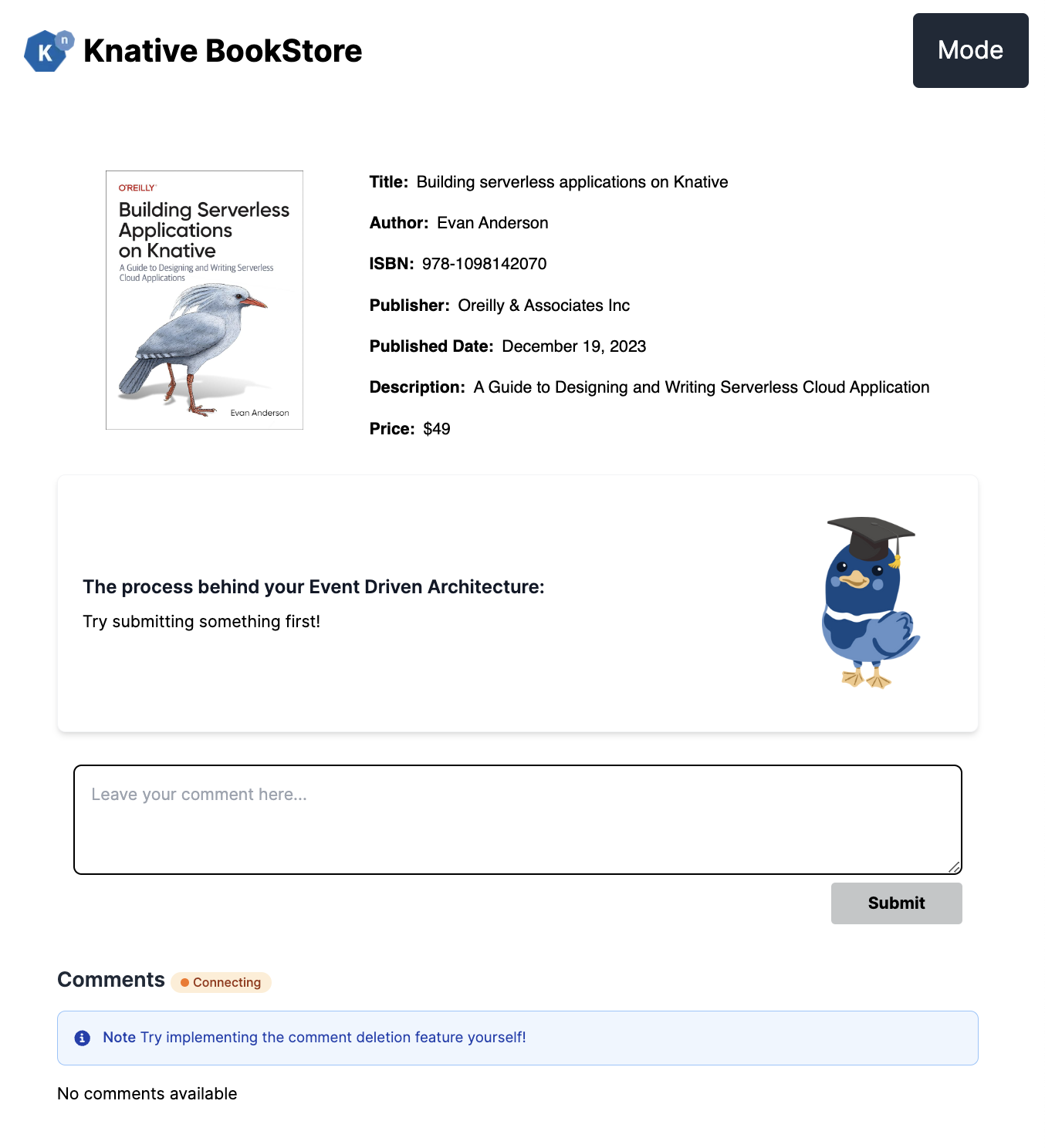

Access the UI page using the bookstore-frontend-svc EXTERNAL-IP address. The UI page should appear!
Task 3: Running the Book Review Service¶
The Node.js server is located in the node-server folder.
Deploy the Book Review Service: Node.js Server¶
You can either build the image locally or use our pre-built image. If you are using the pre-built image, you can proceed to the next step.
When ready, run the following command to deploy the Node.js server:
kubectl apply -f node-server/config/100-deployment.yaml
This command will pull the image and deploy it to your cluster as a Deployment. It will also expose it as a LoadBalancer to receive external traffic.
deployment.apps/node-server created
service/node-server-svc created
Verify
Run the following command to check if the pod is running:
kubectl get pods
You will see that your Node.js server (node-server) pod is running.
NAME READY STATUS RESTARTS AGE
bookstore-frontend-7b879ffb78-9bln6 1/1 Running 0 39m
node-server-68bf98cdf4-skjmh 1/1 Running 0 38m
Access the node server backend¶
Follow the respective minikube or kind instructions to access Kubernetes Services locally from your machine.
Check the running Kubernetes Services:
kubectl get services
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
bookstore-frontend-svc LoadBalancer 10.99.187.173 172.18.0.6 80:31600/TCP 73m
kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 85m
node-server-svc LoadBalancer 10.101.90.35 172.18.0.8 80:31792/TCP 73m
Note
If the EXTERNAL-IP for your frontend service is <pending>, then there you'll need to check that
your minikube tunnel or KinD cloud-provider-kind is working properly.
Verify
Access the node server page using the node-server-svc EXTERNAL-IP address. The UI page should appear!

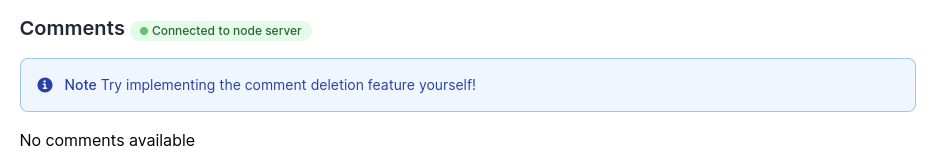

And in your front end page, you should see the status turns green and say "Connected to node server".
Troubleshooting¶
If you encounter any issues during the setup process, refer to the troubleshooting section in the documentation or check the logs of your Kubernetes pods for more details.
Troubleshooting
To check the logs, use the following command:
kubectl logs <pod-name>
Replace <pod-name> with the name of the pod you want to check.
Secondly, ensure your KinD & minikube tunnels are running in order to access the websites.
Next Step¶
You have successfully set up the cluster with Knative installed, and running your front end app and node server. You are all set to start learning. Your journey begins from here.
